Hydraulic Press Machine Manufacturing Process
Update：2024-03-30 Clicks：44
○ Design Phase
The design of a hydraulic press machine is the basis of the entire production process. The main contents involved include determining the purpose, technical parameters, selecting the appropriate hydraulic system, and designing the mechanical structure.
1. Determine the purpose: First, we need to clarify the purpose of the hydraulic press. Different uses (such as stamping, bending, shearing, etc.) determine the specific design parameters and structure of the hydraulic press.
2. Technical parameters: According to the use, we need to determine the main technical parameters of the hydraulic press, such as maximum pressure, working stroke, work surface size, etc. These parameters not only affect the performance of the equipment, but also determine whether it can meet actual production needs.
3. Select the hydraulic system: The hydraulic system is the core part of the hydraulic press. Selecting the appropriate hydraulic components (such as hydraulic pumps, hydraulic cylinders, control valves, etc.) is the key to achieving efficient and high-precision machining. In addition, reasonable hydraulic circuit and control logic need to be designed according to actual needs.

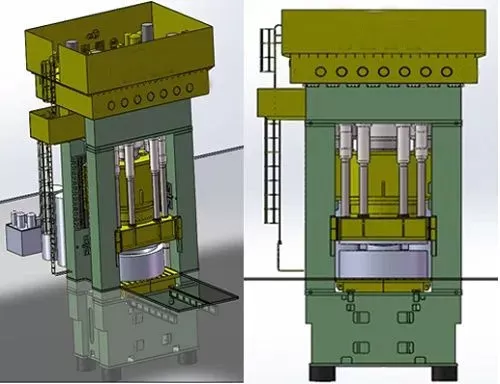

4. Mechanical structure design: The design of the mechanical structure involves many aspects such as the fuselage, workbench, and transmission system. At this stage, it is necessary to focus on the strength, stiffness and stability of the structure to ensure that the equipment can maintain high accuracy and stability during long-term use.
○ Production Phase
After the design phase is completed, we move into the production phase. This stage mainly involves steps such as material preparation, processing and assembly, installation of hydraulic systems, debugging and testing.
1. Material preparation: Prepare the required materials according to the design drawings. This includes steel plates, steel pipes, hydraulic components, etc., ensuring that the quality and specifications of all materials meet design requirements.
2. Processing and assembly: Use various machine tools and welding equipment to process each component to ensure that the accuracy and size of each component meet the design requirements. Then, the components are assembled together according to the design drawings to ensure the stability and reliability of the overall structure.
3. Install the hydraulic system: Install hydraulic components such as hydraulic pumps, hydraulic cylinders, and control valves at designated locations, and connect pipelines and control lines. During the installation process, attention should be paid to the connection method and sealing of each component to ensure the normal operation of the hydraulic system.
4. Debugging and testing: After completion of production, debug and test the hydraulic press. This step includes a comprehensive inspection of the hydraulic system and mechanical structure, such as pressure, flow, speed, etc. In addition, actual machining tests are required to verify the performance and reliability of the hydraulic press.
5. Maintenance and maintenance: During use, regular maintenance and upkeep are the key to ensuring the long-term and stable operation of the hydraulic press machine. This includes checking the wear and sealing conditions of various components and replacing worn parts and seals in a timely manner. At the same time, clean the hydraulic system and mechanical structure regularly to keep the equipment clean and operating normally.
○ Precautions
In the process of manufacturing a hydraulic press machine, you also need to pay attention to the following points:
1. Safety issues: It is crucial to ensure the safety of the equipment during use. During the design stage, the stability of the fuselage and workbench should be fully considered to prevent the equipment from overturning or deforming. At the same time, necessary safety protection devices, such as protective covers, guardrails, etc., are equipped to ensure the safety of operators.
2. Accuracy issue: Accuracy is an important indicator for measuring the performance of a hydraulic press. Therefore, during the design and manufacturing process, great attention should be paid to the machining accuracy and assembly accuracy of each component, especially the accuracy of the transmission system and workbench. In addition, regular accuracy testing and adjustments are necessary.
3. Environmental issues: Pay attention to environmental issues during the production process and control the generation of pollutants such as noise, vibration, and waste liquid. Choosing environmentally friendly materials and components can help reduce the environmental impact of your equipment. At the same time, reasonable disposal of pollutants is also necessary.
4. Reliability issues: In order to ensure the long-term stable operation of a hydraulic press, adequate strength and life analysis of each component is required. Choosing reliable components and materials can help improve the reliability of your equipment. In addition, adopting effective protective measures and maintenance strategies is also an important means to extend the service life of equipment.
○ Conclusion
Manufacturing a hydraulic press machine requires not only theoretical knowledge, but also rich practical experience. Every aspect from design to production requires careful planning and strict control. Safety, precision and reliability are key and should always be prioritized. At the same time, choosing products from well-known brands is also a reliable guarantee. In the future work, the hydraulic press machine will become an important equipment for you to achieve efficient and high-precision processing!
